Type 22 5310 56kv25° - 200mm - 800 mm Diameters

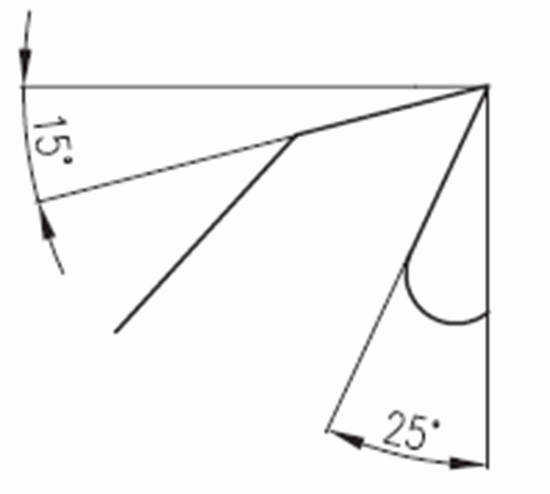

Alloy saw blade with wolf type of tooth geometry Positive hook angle Cutting along & across the grain of soft & hard wood Maxium tooth setting - 1/3 blade thickness of the blade on each side

SKU: 22 5310 56kv

Be the first to review this product

Product Description

Actual Dia (mm)	Nominal Dia (imp)	Number of Teeth	Gauge (mm)	Bore (mm)	Part No
200	8"	56	1.6	25	A2001656
250	10"	56	2.2	25	A2502256
300	12"	56	2.4	30	A3002456
350	14"	56	2.8	30	A3502856
400	16"	56	3.0	30	A4003056
450	18"	56	3.5	30	A4503556
500	20"	56	3.5	30	A5003556
550	22"	56	3.5	30	A5503556
600	24"	56	4.0	30	A6004056
700	28"	56	4.0	35	A7004056
800	32"	56	4.5	40	A8004556
